• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 161701

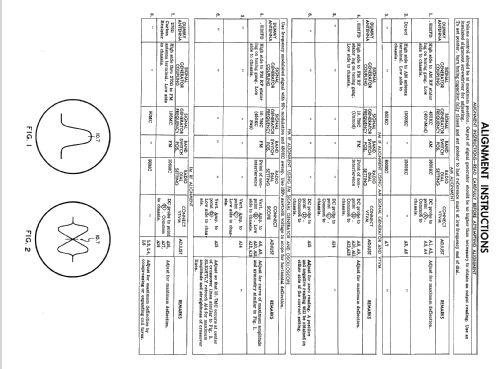

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 12AT7 12AT7 6BE6 6BA6 6AU6 6AU6 6AL5

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

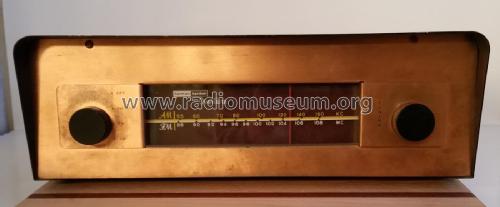

• Model: The Overture T-10 - Harman Kardon; New York

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.63 x 4.25 x 9 inch / 321 x 108 x 229 mm

• Notes
• AM/FM Tuner.
  Armstrong circuit with Limiter & Foster-Seeley Discriminator. Automatic Frequency Control, Low Noise Front End consisting of Tuned Triode Grounded Grid Amplifier and Triode Mixer.
  Superheterodyne with A.V.C. and Ferrite Antenna.
  Escutcheon: brushed copper. Cage: matt black. Edge lighted dial glass: yellow and white.
  Shipping weight 10 lbs.
  7 Tubes, Selenium Rectifier.

• Price in first year of sale
• 80.00 $

• Source of data
• -- Original prospect or advert

• Mentioned in
• Harman Kardon - The best seat in the Concert Hall - 1957 - page 10

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 350 Folder 6 date 3 - 57)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.

• Other Models

• Here you find 298 models, 257 with images and 129 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Harman Kardon; New York
