Serenade TX-20
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154663
Original prospekt.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Serenade TX-20 - Harman Kardon; New York
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 12 x 8 x 4 inch / 305 x 203 x 102 mm
- Notes
- The Harman Kardon Model TX-20 is an AC operated 8 Tube FM-AM Receiver.
- Net weight (2.2 lb = 1 kg)
- 11 lb 0 oz (11 lb) / 4.994 kg
- Price in first year of sale
- 100.00 $
- Literature/Schematics (1)

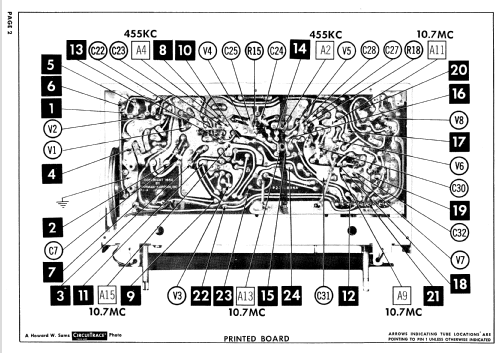

- Photofact Folder, Howard W. SAMS (Date 11-59, Set 464, Folder 11)
- Literature/Schematics (2)
- Radio Shack Catalog (1959; page 12)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
