• Country
• Finland

• Manufacturer / Brand
• Harmon, Turku

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 287315

• • alternative name: Radiokeskus Oy, Turku

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ11 EM11

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

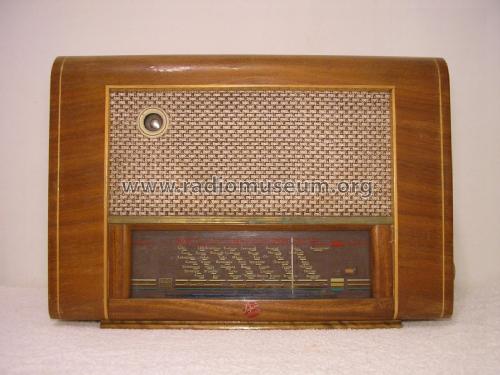

• Model: 504 A - Harmon, Turku

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 505 x 323 x 215 mm / 19.9 x 12.7 x 8.5 inch

• Author
• Model page created by Timo Rantasaari. See "Data change" for further contributors.

• Other Models

• Here you find 36 models, 26 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
