Umschaltpult CMD 05
Hartig & Helling, H&H; Essen und Bochum
- Country
- Germany
- Manufacturer / Brand
- Hartig & Helling, H&H; Essen und Bochum
- Year
- 1990 ??
- Category
- Miscellaneous (Other, Various) - see notes
- Radiomuseum.org ID
- 314451
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Umschaltpult CMD 05 - Hartig & Helling, H&H; Essen
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 170 x 50 x 95 mm / 6.7 x 2 x 3.7 inch
- Notes
-

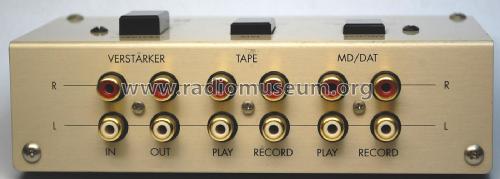

Das Modell Umschaltpult CMD 05 von Hartig & Helling (H&H) ermöglicht den Anschluss
von zwei Audio-Signalquellen (TAPE / MD/DAT) am Eingang des Schaltpultes, wobei das "geschaltete" Signal am Ausgang einem Verstärker-Eingang (Line / AUX) zugeführt wird.
Kabelverbindung der Signalquellen: Chinch-Anschluss.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Author
- Model page created by Jürgen Küting. See "Data change" for further contributors.
