• Country
• Germany

• Manufacturer / Brand
• Hartmann & Braun AG; Frankfurt

• Year
• 1954

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 167112

• • Brand: Elima

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite case

• from Radiomuseum.org

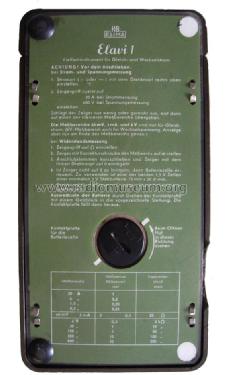

• Model: Elavi 1 - Hartmann & Braun AG; Frankfurt

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 100 x 190 x 65 mm / 3.9 x 7.5 x 2.6 inch

• Notes

• Messbereiche:

  Strom: 0,003 A; 1,5 A; 6 A; 30 A;
  Widerstand: 0 - 10 kΩ;
  Spannung: 60 mV; 6 V; 30 V; 150 V; 300 V; 600 V.

  ---

  Voltage: 0.06 to 600 V.
  Current: 0.003 to 30 A.
  Resistance: 0 to 10 kΩ.

  Made by Elima GmbH.

• Net weight (2.2 lb = 1 kg)
• 0.850 kg / 1 lb 14 oz (1.872 lb)

• Price in first year of sale
• 123.00 DM

• Literature/Schematics (1)
• -- Original prospect or advert

• Literature/Schematics (2)
• Arlt-Radio Elektronik-Sonderliste 1959, Preisangabe

• Literature/Schematics (3)
• -- Original prospect or advert (L'Elettrotecnica, Italy, number 10, October 1958)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
