• Country
• Germany

• Manufacturer / Brand
• Hartmann & Braun AG; Frankfurt

• Year
• 1974 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 103947

• • Brand: Elima

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

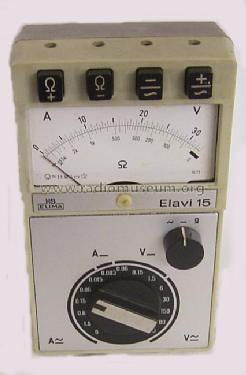

• Model: Elavi 15 - Hartmann & Braun AG; Frankfurt

• Dimensions (WHD)
• 95 x 64 x 165 mm / 3.7 x 2.5 x 6.5 inch

• Notes
• Messbereiche: Gleichspannung: 600, 300, 150, 30, 6, 1,5, 0,15, 0,06 V;
  Gleichstrom: 6, 1,5 A, 600, 150, 60, 15, 3 mA.
  Wechselspannung: 600, 300, 150, 30, 6 V.
  Wechselstrom: 6, 1,5 A, 600, 150, 60, 15 mA.
  Widerstandsmessbereich: 10 kOhm.

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Price in first year of sale
• 167.00 DM

• Mentioned in
• -- Original-techn. papers.
