• Country
• Germany

• Manufacturer / Brand
• Hartmann & Braun AG; Frankfurt

• Year
• 1952

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 350846

• • Brand: Elima

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / D: 3 x 1,5 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Messkoffer MS1 - Hartmann & Braun AG; Frankfurt

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 360 x 140 x 240 mm / 14.2 x 5.5 x 9.4 inch

• Notes

• Messkoffer dient für Messungen von Strom und Spannung in Gleich- und Wechselstrom, Widerstand, Induktivität und Kapazität.

  Der Messkoffer enthält unter anderem die Geräte:

  • Multavi 5s, eine Sonderausführung des Multavi 5
  • Inkavi M47

• Net weight (2.2 lb = 1 kg)
• 6.4 kg / 14 lb 1.6 oz (14.097 lb)

• Source of data

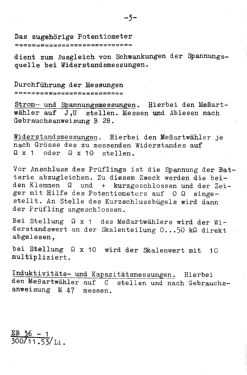

• -- Original-techn. papers.

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
