- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187846
Healing prospect
Healing prospect
Healing prospect
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 67.5 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 404B - Healing, A.G., Ltd.; Melbourne
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8.5 x 2.625 x 4.5 inch / 216 x 67 x 114 mm
- Notes

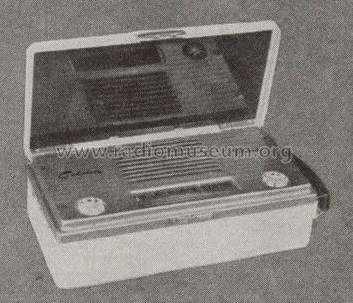

- This radio is of the personal portable type. Loop aerial is in the lid which, when opened, reveals the controls, dial and speaker grill. The price and weight below includes batteries.
- Net weight (2.2 lb = 1 kg)
- 3 lb 15 oz (3.938 lb) / 1.788 kg
- Price in first year of sale
- 20.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. VII
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
