Royal 44 Console
Healing, A.G., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 262200

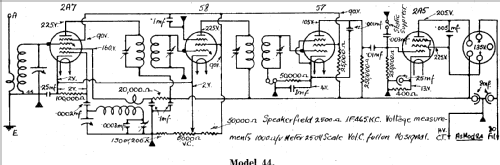

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Royal 44 [Console] - Healing, A.G., Ltd.; Melbourne
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
5-Valve, AC-powered superhet in a Walnut console cabinet.
The Royal cabinet was also used in Models, 24, 34, & 54
- Price in first year of sale
- 19.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (1934 Pamphlet.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
