- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 156627

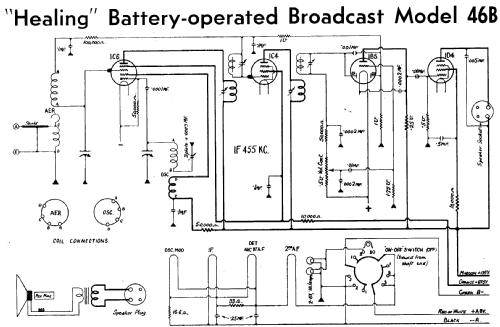

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 67.5 & 135 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 46B - Healing, A.G., Ltd.; Melbourne
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- Healing 46B;
Switchable dial lamp. An optional synchronous vibrator power pack was available for this radio.
- Source of data
- -- Schematic
- Literature/Schematics (1)

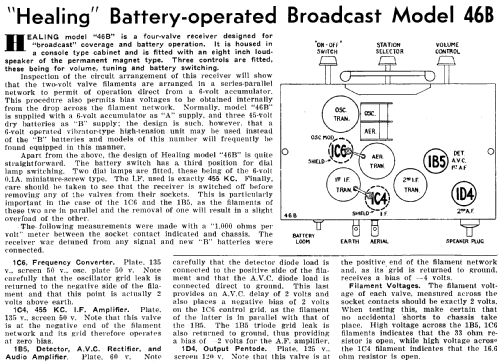

- Radio Trade Annual 1938 P273.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
