• Country
• Australia

• Manufacturer / Brand
• Healing, A.G., Ltd.; Melbourne

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 262245

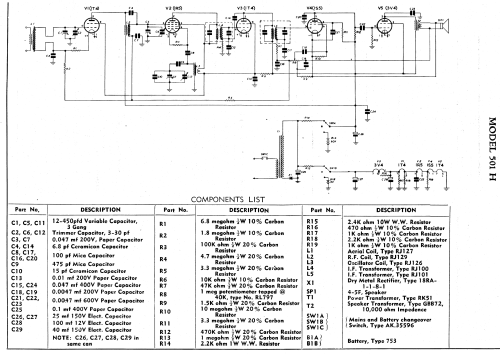

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1T4 1S5 3V4

• Number of Transistors

• Semiconductors
• Metal-rectifier

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 200-240 / 9 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org
• Model: New Companion 501H - Healing, A.G., Ltd.; Melbourne

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Vynex and leather case available in blue/grey, charcoal/off White, tan/buff and red barony/grey.

  Battery: Eveready Type 753.

  Mains rectifier is a metal type; 18RA-1-1-8-1.

  See also transistor Model 600T with similar case styling.

• Price in first year of sale
• 37.80 AUS £

• Mentioned in
• Mingay's Price Service (Nov 1958 to Aug 1959.)

• Literature/Schematics (1)

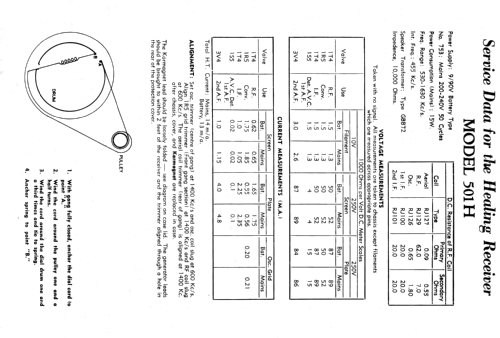

• -- Original-techn. papers. (Service data for the Healing Model 501H, Pages 350 & 351.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series, Vol. 1, 1963, Page H9.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
