• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 187852

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 502E - Healing, A.G., Ltd.; Melbourne

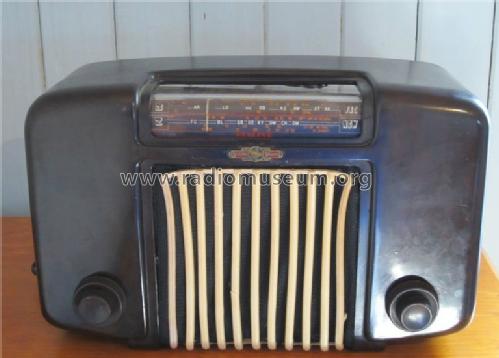

  • Shape
  • Tablemodel, low profile (big size).

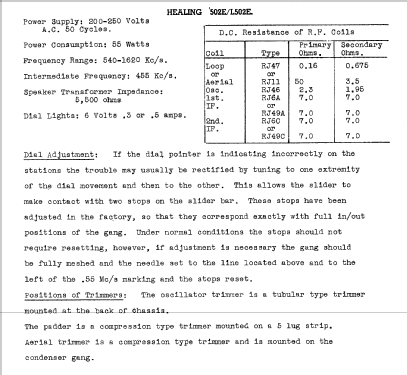

  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. VII
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
