- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169629

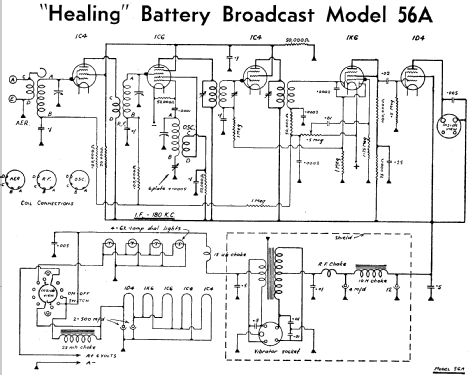

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- Vibrator
- Main principle
- Superhet with RF-stage; ZF/IF 180 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 56A - Healing, A.G., Ltd.; Melbourne
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18.5 x 12.25 x 9 inch / 470 x 311 x 229 mm
- Notes
-
5-valve, 6 V accumulator powered superhet with RF stage.
Pilot light switch fitted to the volume control.
This model uses a synchronous vibrator power unit.
- Price in first year of sale
- 28.35 AUS £
- Mentioned in
- -- Original prospect or advert (Chronicle (SA) Feb 11, 1937, Page 45.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Healing Service Manual, Page 71.)
- Literature/Schematics (2)
- Radio Trade Annual of Australia (Volume 6, 1938, Page 274.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
