Capitol 603-23CC
Healing, A.G., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 236774

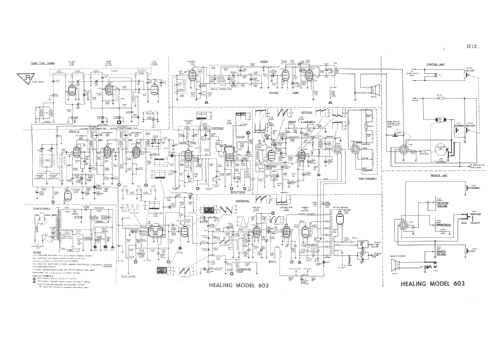

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- 6GK5 6CG8A 6BZ6 6BZ6 6EJ7 12BY7A 6AU6 6AV6 6AQ5 6BU8 6GV8 6EA8 6DQ6B 6AU4GTA 1B3GT 23CP4
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36875/31375 kHz; 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 230; 240; 250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Capitol 603-23CC - Healing, A.G., Ltd.; Melbourne
- Dimensions (WHD)
- 34 x 31 x 16.5 inch / 864 x 787 x 419 mm
- Notes
-

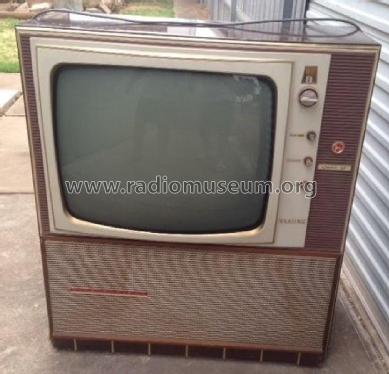

This 23 inch B&W television receiver tunes the 13 standard Australian VHF channels. This model has a wired remote control and a motorised tuner.

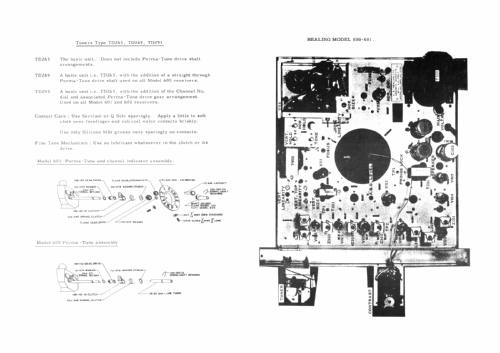

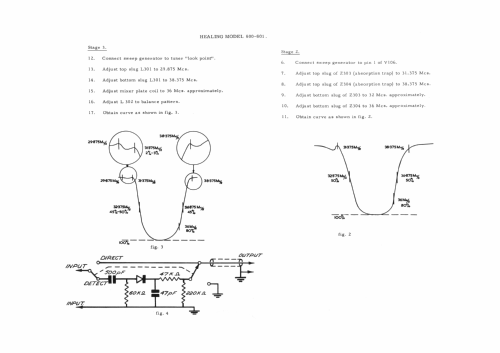

The Capitol 603-23CC is similar to the Capitol 601-23CC TV receiver and has the additional feature of a remote control unit. For electrical specifications and alignment procedures refer to the 601 series data.
- Price in first year of sale
- 238.00 AUS £
- Literature/Schematics (1)
- J. R. Publications "Television Service Handbook" Page H12.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
