- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 174847
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: A449E - Healing, A.G., Ltd.; Melbourne
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes

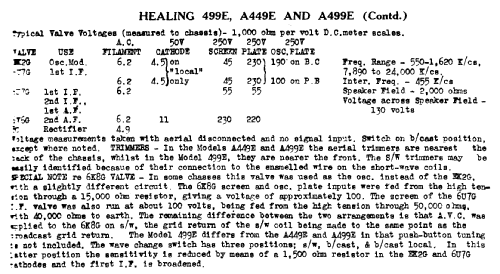

- This model uses 8 position push button tuning. The 6B8G is reflexed as the 2nd I.F. amplifier and the 1st A.F. amplifier.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. III
- Literature/Schematics (1)
- Mingay's Radio Diagram & I.F. Index
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
