Radio-Gramophone 40
Healing, A.G., Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Healing, A.G., Ltd.; Melbourne
- Year
- 1931 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346984
From the Dick Howarth collection.
From the Dick Howarth collection.
From the Dick Howarth collection.
From the Dick Howarth collection.
- Number of Tubes
- 5
- Main principle
- TRF without regeneration; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 200; 230; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radio-Gramophone 40 - Healing, A.G., Ltd.; Melbourne
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 640 x 1180 x 330 mm / 25.2 x 46.5 x 13 inch
- Notes
-
AC-powered TRF Radiogram.
The cabinet is in the traditional "colonial" style and is also used in other models of the era.

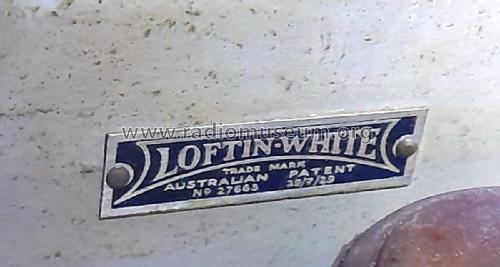

A tag on the chassis indicates a Loftin-White audio circuit is used.
The record player motor is made by Paillard.
Pickup is made by BTH.
The speaker is made by Magnavox.
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
