• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1965 ??

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 140224

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N1526 2N1524 2N1524 2N408 2N408 2N408

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

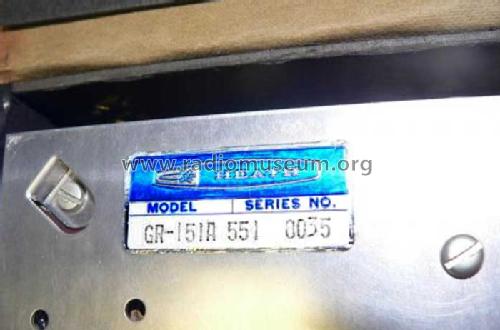

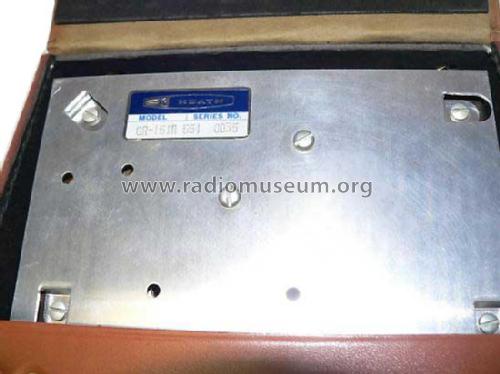

• Model: 6 Transistor GR-151A - Heathkit Brand, Heath Co.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 8 x 7 x 3 inch / 203 x 178 x 76 mm

• Notes

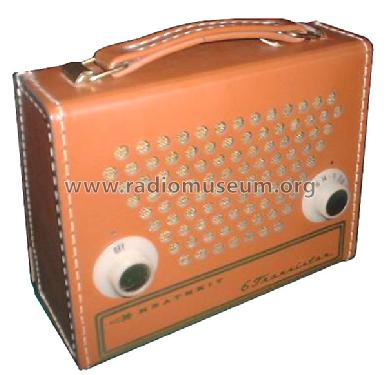

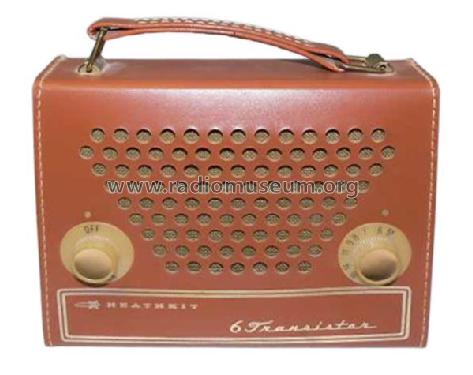

• Heathkit GR-151A, 6 Transistor. 4"x6" speaker. Built-in ferrite rod antenna. Simulated tan leather case. Kit price 1965: Radio, tool kit & battery (Eveready #2356).

• Price in first year of sale
• 22.00 $

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Original prospect or advert

• Author
• Model page created by a member from A. See "Data change" for further contributors.
