• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1973 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 80686

• • alternative name: Heath Company

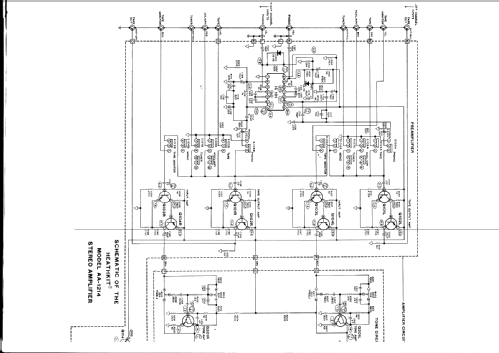

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• µA739 TIP31 TIP31 TIP31 TIP31

• Main principle
• Audio-Amplification

• Power type and voltage
• Alternating Current supply (AC) / 120-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AA-1214 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 432 x 98 x 330 mm / 17 x 3.9 x 13 inch

• Notes
• Transistor-Stereoverstärker 2 x 20 Watt. Bausatz 395 DM, Fertiggerät 495 DM.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Mentioned in
• -- Original prospect or advert (deutscher Heathkit Katalog 1973)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
