• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1961

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 80547

• • alternative name: Heath Company

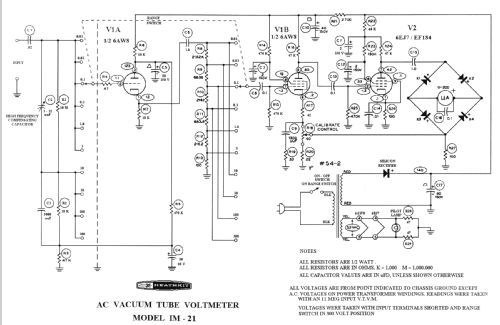

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 6AW8 6EJ7 or EF184

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

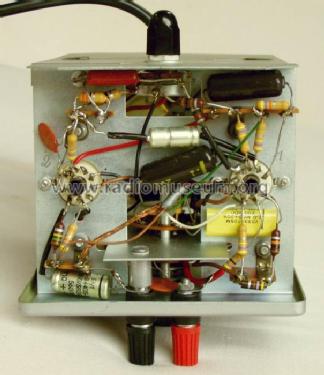

• Model: AC Vacuum Tube Voltmeter IM-21 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 120 x 220 x 140 mm / 4.7 x 8.7 x 5.5 inch

• Notes
• 10 Messbereiche 10 mV bis 300 V.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
