• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1962–1967 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89655

• • alternative name: Heath Company

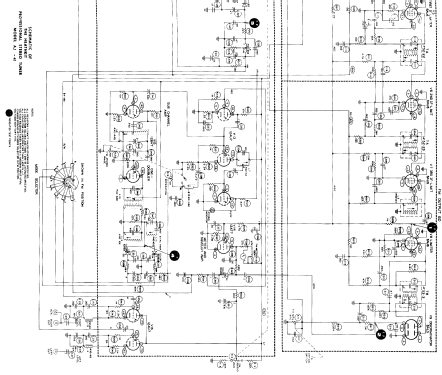

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BS8 12AT7 6AB4 6AU6 6AU6 6AU6 6AU6 6AU6 6AL5 6BA6 6BE6 6BA6 12AU7 12AT7 12BH7 12AU7

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     14 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Tuner AJ-41 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15.5 x 5.25 x 14.25 inch / 394 x 133 x 362 mm

• Notes

•  Tuner with independent AM and FM sections, and MPX decoder.

• Net weight (2.2 lb = 1 kg)
• 18.5 lb (18 lb 8 oz) / 8.399 kg

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Heathkit-Katalog, Sommer 1967

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
