• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1958 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 168277

• • alternative name: Heath Company

• Number of Tubes
• 5

• Valves / Tubes

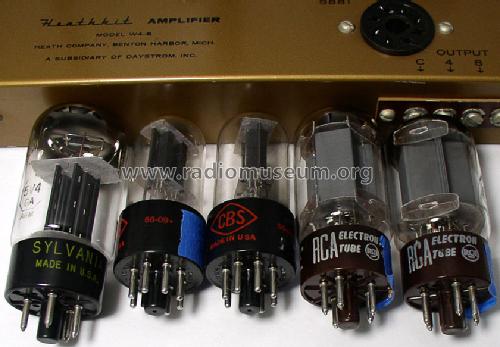

• 6SN7GT 6SN7GT 5881 5881 5V4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 20 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Amplifier W4-B - Heathkit Brand, Heath Co.;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 15.25 x 7 x 8.5 inch / 387 x 178 x 216 mm

• Notes
• Power Amp, mono; with Williamson-type circuit.

• Net weight (2.2 lb = 1 kg)
• 28 lb (28 lb 0 oz) / 12.712 kg

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
