• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1969–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80692

• • alternative name: Heath Company

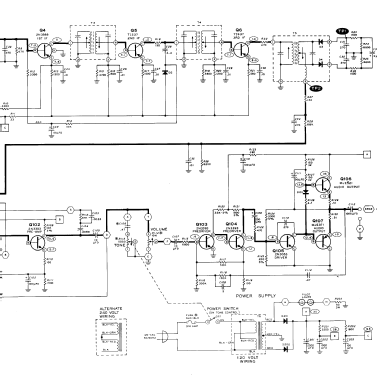

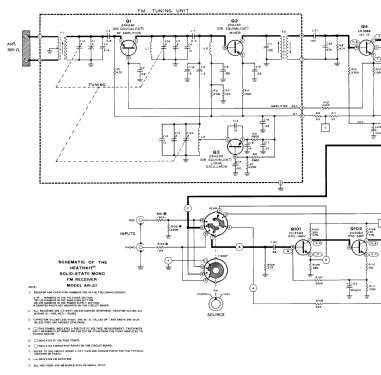

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AR-27 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 305 x 83 x 248 mm / 12 x 3.3 x 9.8 inch

• Notes
• UKW Hifi Receiver. Kit for 168 DM.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 199.00 DM

• Mentioned in
• -- Original prospect or advert (deutscher Heathkit Katalog 1973)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
