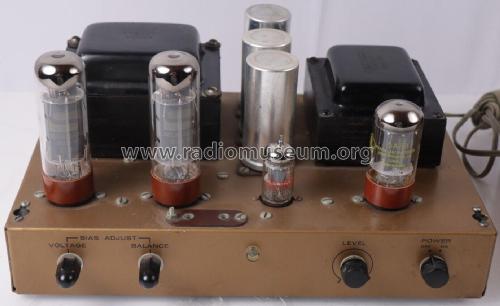

Mono Power Amplifier AA-10

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1961 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 132227
    • alternative name: Heath Company

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 50 - 60 Hz; 117 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 35 W (42 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Mono Power Amplifier AA-10 - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 12 x 6.375 x 8 inch / 305 x 162 x 203 mm
  • Notes

  • Power Amp, mono, with power supply for PreAmp.

    This model is essentially identical to the Heathkit AA-81 except for the paint scheme.

  • Net weight (2.2 lb = 1 kg)
  • 20 lb 15.3 oz (20.956 lb) / 9.514 kg
  • Source of data
  • -- Collector info (Sammler)
