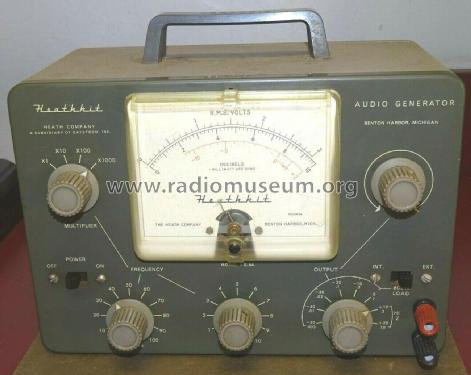

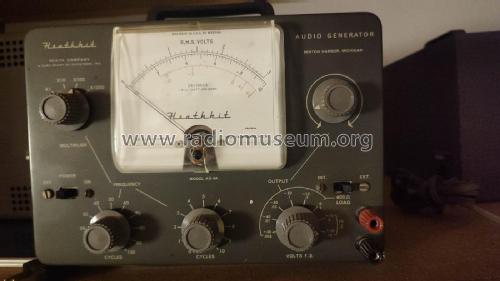

Audio Generator - Dekaden-R/C-Generator AG-9A

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

  • Year
  • 1957–1962 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 80501
    • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Audio Generator - Dekaden-R/C-Generator AG-9A - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 245 x 200 x 155 mm / 9.6 x 7.9 x 6.1 inch
  • Notes
  • Dekaden-R-C-Generator; Frequenzbereich: 10 Hz-100 kHz, mit 3 Dekadenschaltern einstellbar; Ausgangsspannung: 0 bis 10 Veff; zuschaltbarer 600 Ω-Abschlusswiderstand. Preis für den Bausatz: 289 DM.

  • Net weight (2.2 lb = 1 kg)
  • 2.5 kg / 5 lb 8.1 oz (5.507 lb)
  • Price in first year of sale
  • 339.00 DM
  • Source of data
  • -- Collector info (Sammler)
  • Mentioned in
  • Heathkit-Daystrom-Katalog 1961
  • Literature/Schematics (1)
  • Funk-Technik (FT) (23/1957, S. 806 / Werbung, (neu eingetroffen))
  • Author
  • Model page created by Hugo Sneyers. See "Data change" for further contributors.
