• Year
  • 1969 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 89637
    • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

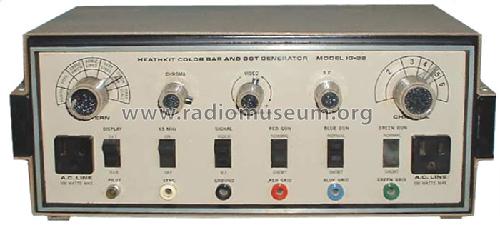

  • Model: Bar Generator IG-28 - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Color Bar and Dot Generator.
  • Literature/Schematics (1)
  • -- Schematic
