• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1952 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 173189

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

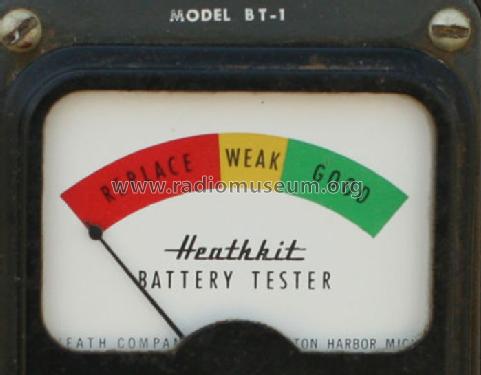

• Model: Battery Tester BT-1 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 3 x 5.875 x 2.75 inch / 76 x 149 x 70 mm

• Notes
• 0 to 15; 0 to 180 Volts.

• Net weight (2.2 lb = 1 kg)
• 3 lb (3 lb 0 oz) / 1.362 kg

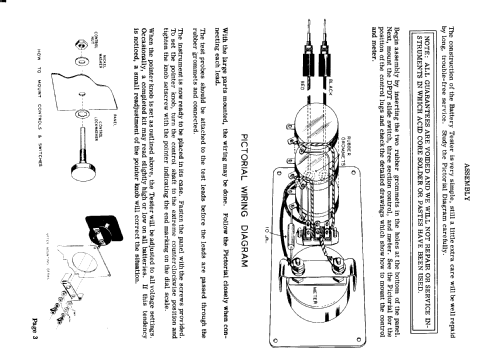

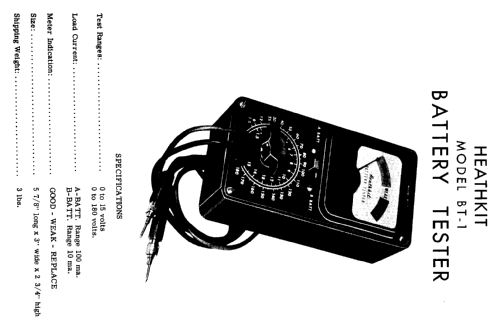

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
