• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1963 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 138984

• • alternative name: Heath Company

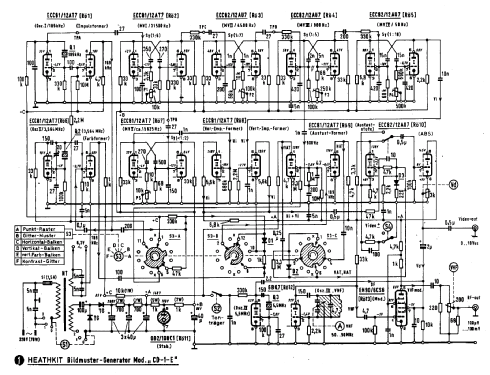

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 12AT7 12AT7 12AU7 12AU7 12AU7 12AT7 12AT7 12AT7 12AT7 12AU7 6CS6 6BQ7 108C1

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Bildmuster-Generator CD-1-E - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 320 x 215 x 178 mm / 12.6 x 8.5 x 7 inch

• Notes
• Bildmuster-Generator CD-1-E.

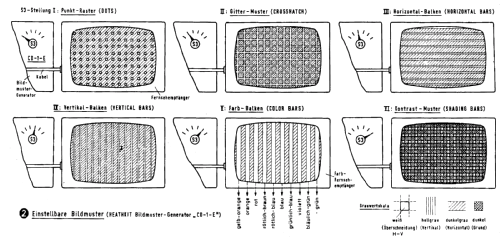

  Erzeugt 6 Bildmuster im VHF-Bereich durchstimmbar 50 bis 90 MHz oder Video-Ausgangssignal 0 bis 10 V_ss.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 4,200.00 ATS

• Mentioned in
• - - Manufacturers Literature (Radioschau 1.1963)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
