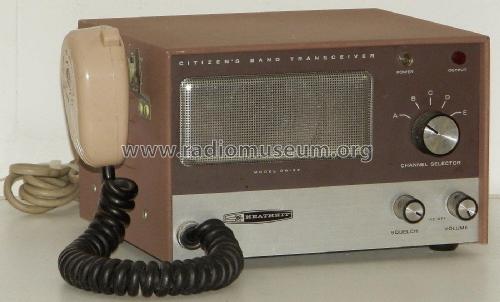

Citizen`s Band Transceiver GW-22A
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1964
- Category
- Citizen Band Equipment
- Radiomuseum.org ID
- 299871
-
- alternative name: Heath Company
- Number of Tubes
- 8
- Main principle
- Transceiver; ZF/IF 455 kHz; 2 AF stage(s)
- Wave bands
- Short Wave (SW only)
- Power type and voltage
- Alternating Current supply (AC) / 117; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Citizen`s Band Transceiver GW-22A - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 230 x 150 x 240 mm / 9.1 x 5.9 x 9.4 inch
- Notes
-
Feststation für CB-Funk.
5 Kanäle im 11 m-CB-Band (26,965 bis 27,255 MHz), Steckquarze.
Amplitudenmodulation, Sender-Eingangsleistung 5 W, Rauschsperre.
- Net weight (2.2 lb = 1 kg)
- 3.740 kg / 8 lb 3.8 oz (8.238 lb)
- Price in first year of sale
- 47.95 $
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
