Condenser Checker C-3
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1961 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 80578
-
- alternative name: Heath Company

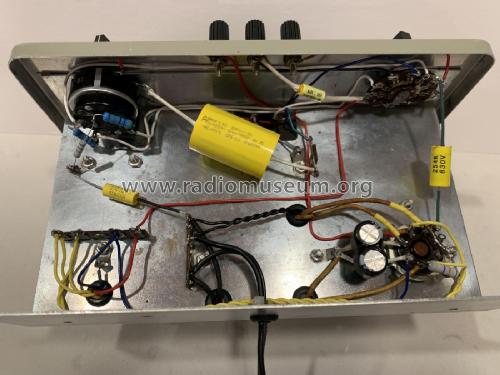

Replacement parts installed for restoration
Original condition - exterior cleaned.
Quelle Bechstein

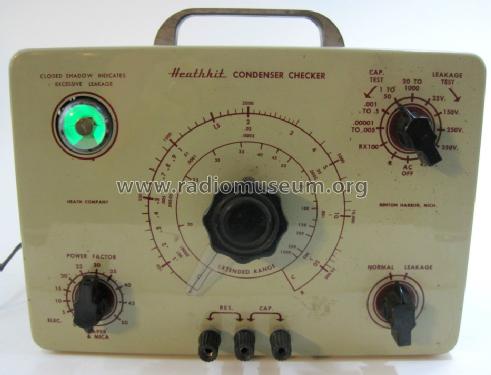

Heathkit C3 Front View
Heathkit Condenser Checker Model C-3
Aus Katalog.
Heathkit C3 Rear View
Heathkit Condenser Checker Model C-3
Heathkit Condenser Checker Model C-3
aus ebay, #262153910444, Verkäufer ama100
aus ebay, #262153910444, Verkäufer ama100

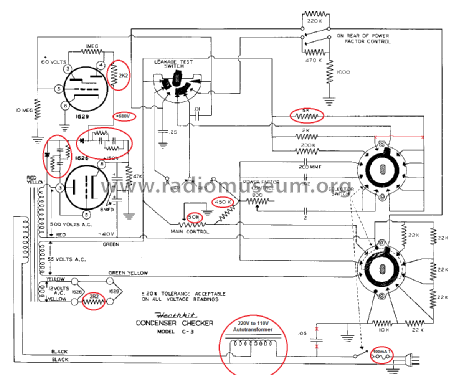

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Condenser Checker C-3 - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 9.5 x 6.5 x 5 inch / 241 x 165 x 127 mm

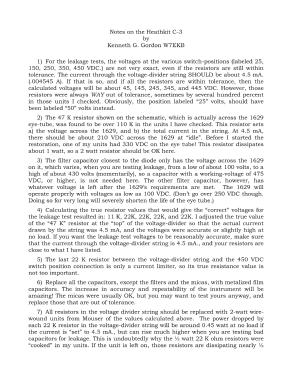

- Notes
-

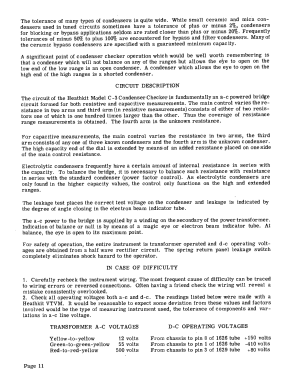

With this unit we can test paper, mica, ceramic and electrolytic capacitors.
Four ranges from 10 pF to 1000 µF. Voltage test from 25 to 450 DC V.
Also resistors can be tested from 100 Ω to 5 MΩ.In Italy it was offered both as a kit at ITL 28,000 and assembled at ITL 35,000. (1954)
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Mentioned in
- Funk-Technik (FT) (9/1961, S. 275 / Werbeanzeige)

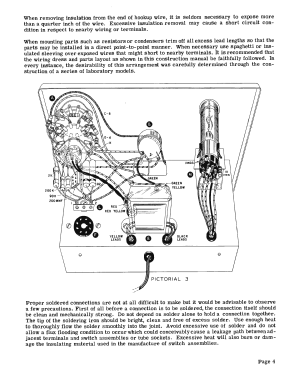

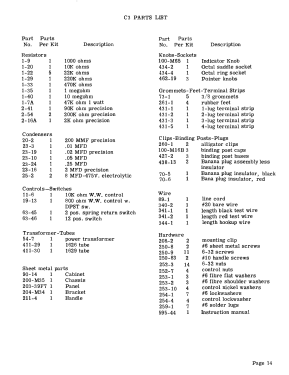

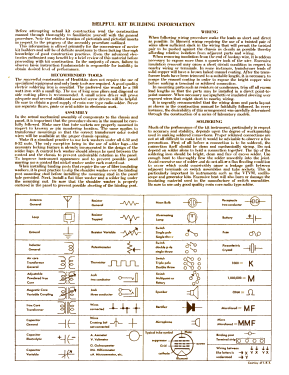

- Literature/Schematics (1)
- -- Original prospect or advert (Original catalog by Larir, agent for Italy, 1954.)
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
