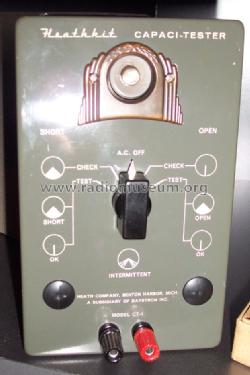

Capaci-Tester CT-1

• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960–1969 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 81729

• • alternative name: Heath Company

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 1629

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Capaci-Tester CT-1 - Heathkit Brand, Heath Co.;

• Dimensions (WHD)
• 120 x 190 x 100 mm / 4.7 x 7.5 x 3.9 inch

• Notes
• Capacitor tester

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Funk-Technik (FT) (8/1960, S. 237 / Werbeanzeige)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
