• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1957

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 215598

• • alternative name: Heath Company

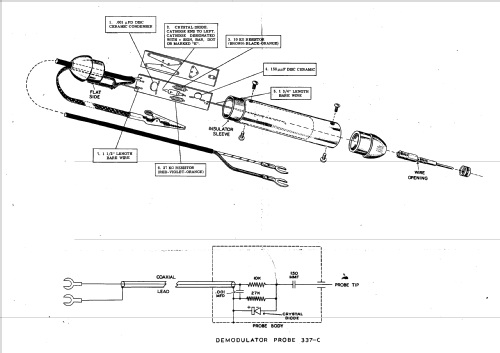

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org
• Model: Demodulator Probe 337-C - Heathkit Brand, Heath Co.;

• Dimensions (WHD)
• 0.875 x 0.875 x 6.25 inch / 22 x 22 x 159 mm

• Notes
• Tubular probe made of aluminum and plastics with shielded cable. Intended for use with an Oscilloscope. This unit was originaly delivered in kit form.

• Author
• Model page created by David Leishman. See "Data change" for further contributors.
