• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960–1964

• Category
• Amateur Transmitter (only)

• Radiomuseum.org ID
• 150390

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6CL6 6CL6 6146 12AX7 6DE7

• Main principle
• Transmitter; 4 AF stage(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 105-125; 210-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: DX-60 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 349 x 165 x 292 mm / 13.7 x 6.5 x 11.5 inch

• Notes

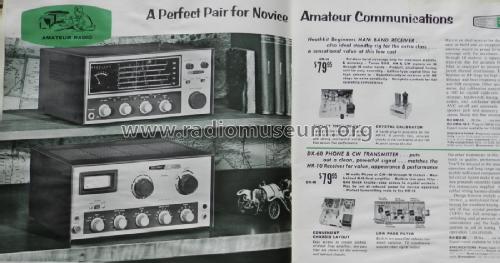

• Heathkit Transmitter DX-60.
  AM/CW transmitter (kit) for 80 to 10 meters HAM bands. Crystal control with 4× FT-243 crystal sockets. VFO operation requires external VFO HG-10. Export model with 210-250 V option.
  Inital model of the DX-60 series.

• Net weight (2.2 lb = 1 kg)
• 10.4 kg / 22 lb 14.5 oz (22.907 lb)

• Price in first year of sale
• 83.00 $

• Mentioned in
• ARRL QST July 1961, Internet

• Author
• Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
