Electronic Switch S-3

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Year
1958–1961 ?

Category
Service- or Lab Equipment

Radiomuseum.org ID
139288

- alternative name: Heath Company

Schematics

Heathkit Brand, Electronic Switch S-3 (3)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (2)
Radio Constructeur et Dépanneur 1958

Heathkit Brand, Electronic Switch S-3 (2)
Radio Constructeur et Dépanneur 1958

Heathkit Brand, Electronic Switch S-3 (2)
Radio Constructeur et Dépanneur 1958

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Heathkit Brand, Electronic Switch S-3 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
12AX7 12AX7 12AU7 12AU7 12AU7 6C4 6X4

Power type and voltage
Alternating Current supply (AC) / 115 Volt

Material
Metal case

from Radiomuseum.org

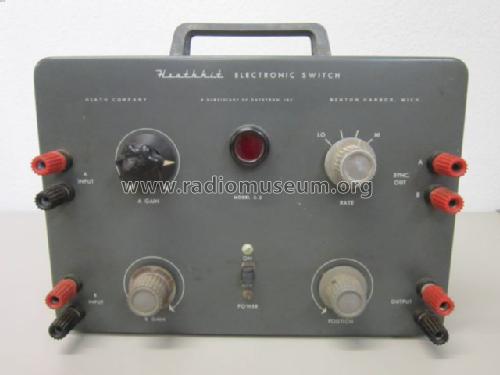

Model: Electronic Switch S-3 - Heathkit Brand, Heath Co.;

Mentioned in
Funk-Technik (FT) (9/1961, S. 275 / Werbeanzeige)

Author
Model page created by Raynal Aufils. See "Data change" for further contributors.
