• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79919

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6C9_Twin-Tetrode 6AU6 6AU6 6AU6 6BN8 12AU7 12AU7

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

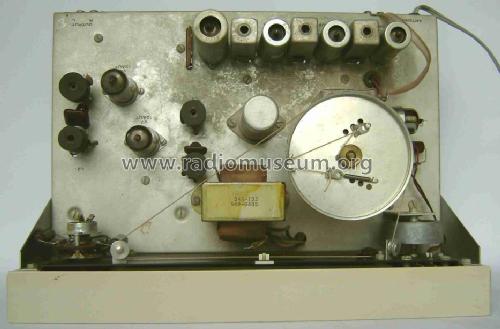

• Model: FM Stereo Tuner AJ-13 - Heathkit Brand, Heath Co.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 340 x 120 x 235 mm / 13.4 x 4.7 x 9.3 inch

• Notes
• Kit form

• Net weight (2.2 lb = 1 kg)
• 4.6 kg / 10 lb 2.1 oz (10.132 lb)

• Author
• Model page created by Marc Gianella. See "Data change" for further contributors.
