• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1971 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 82061

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• B-5859S B-5859S B-5859S B-5859S B-5859S

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 120; 240 Volt

• Material
• Metal case

• from Radiomuseum.org

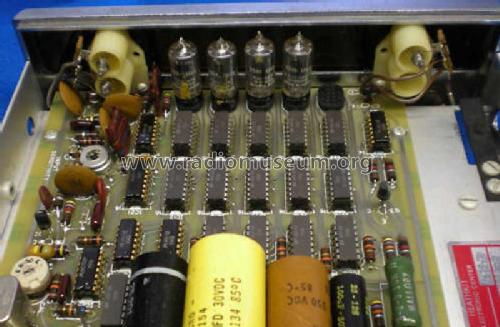

• Model: Frequency Counter IB-101 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 79 x 229 mm / 8.3 x 3.1 x 9 inch

• Notes
• 1 Hz bis über 15 MHz; Empfindlichkeit 100 mV (max. 200 Volt). Input: 1 MOhm/20 pF. Anzeige 5-stellig mit Nixie-Röhren. Bausatz DM 990.- Fertiggerät: DM 1350.- Preis in Österreich: ATS 9990.-

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• Mentioned in
• -- Original prospect or advert ((deutscher Heathkit Katalog 1973))

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
