• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 89119

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N1526 2N1524 2N1524 2N408 2N408 2N408

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 6 x 1,5 (C Cells) Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: 6 Transistor GR-151B - Heathkit Brand, Heath Co.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 8 x 6.5 x 3 inch / 203 x 165 x 76 mm

• Notes

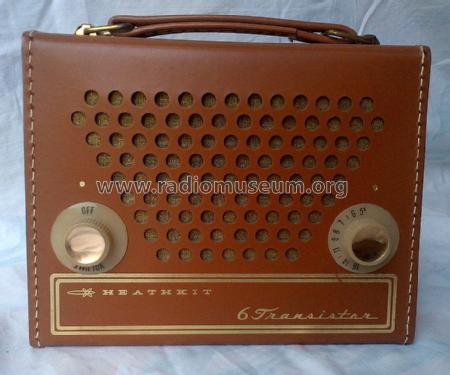

• Heathkit 6 Transistor Portable AM Radio Model GR-151B.
  LeatherCase, Carrying Handle.

  Similar to advance schools GRB-151-2.

• Literature/Schematics (1)

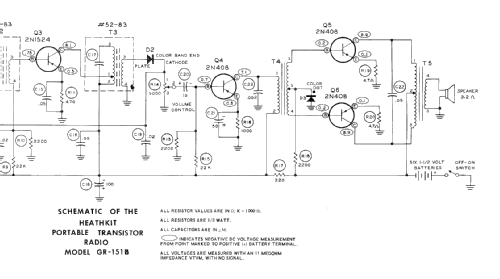

• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
