TV AM-FM Clock GR-5005 (GRZ-5005)

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 152178
    • alternative name: Heath Company

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Line / Batteries (any type) / 120/ 12; 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
  • from Radiomuseum.org
  • Model: TV AM-FM Clock GR-5005 - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 6 x 7.25 x 11 inch / 152 x 184 x 279 mm
  • Notes

  • Heathkit Kit GR-5005, (GRZ-5005 for assembled & tested version);

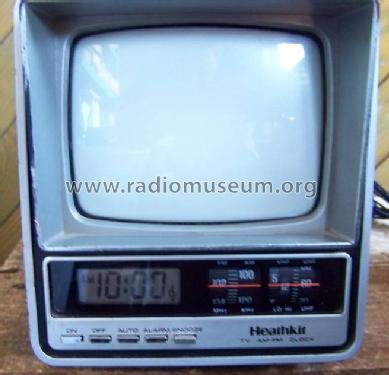

    5" B/W TV with US standard VHF & UHF tuner, AM/FM radio, built-in LCD alarm clock & sleep timer, power supply detachable, earphones jack, ext. antenna in, rechargeable batt. pack type GRZ-5005-1 US$ 19.95, kit version US$ 149.95, assembled vers. US$ 179.95

    External DC input 8-15V (plus at center pin)

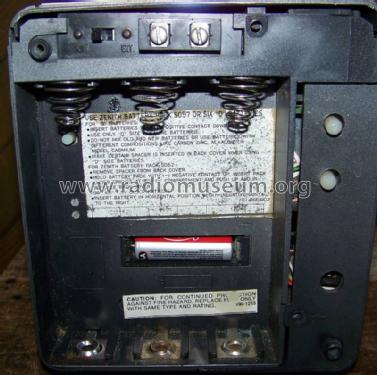

    Separate 1.5V AA battery for LCD clock powering

    See also the similar model Zenith Explorer BT052S

  • Net weight (2.2 lb = 1 kg)
  • 2.9 kg / 6 lb 6.2 oz (6.388 lb)
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
