High Fidelity FM Tuner AJ-31

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1963 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 172808
    • alternative name: Heath Company

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: High Fidelity FM Tuner AJ-31 - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 13.5 x 9.375 x 6 inch / 343 x 238 x 152 mm
  • Notes

  • FM tuner with AFC, mono; for stereo an external converter like Heath AC-11 is required.

  • Literature/Schematics (1)

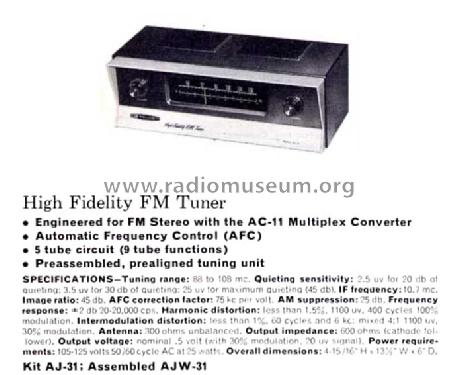

  • -- Original prospect or advert
