• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1968–1970 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 89069

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6AU6 6AU6 AU6 6AU6 6AU6 6AU6 6EA8 6EA8 6EA8 6EA8 12AT7 12AT7 6CL6 6GW8 12AU7 6146 6146 6CS6 6BN8 0A2

• Number of Transistors
• 2

• Semiconductors
• MPF105 2N3393

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: "Hot Water" HW-100 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 15 x 6.25 x 13.5 inch / 381 x 159 x 343 mm

• Notes

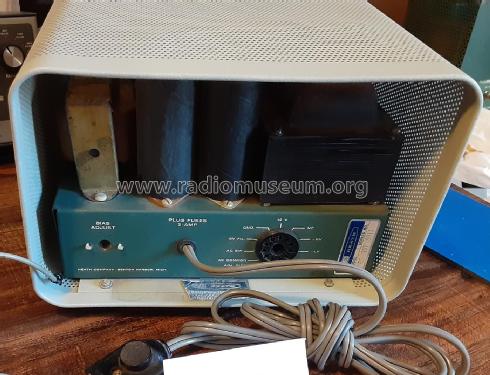

• Heathkit HF-Transceiver HW-100.
  Covers 80-10 m HAM bands in SSB and CW. Needs power supply HP-23. P_out: 100 W.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 250.00 $

• Source of data
• Heathkit: A Guide to Amateur Radio Products

• Mentioned in
• QST (January 1969 pages 51-54)
