• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1973

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 149264

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 455/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 12.6 - 16 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

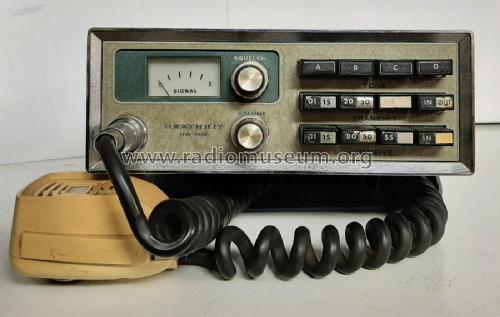

• Model: 2-m-Mobiltransceiver HW-202 - Heathkit Brand, Heath Co.;

• Dimensions (WHD)
• 8.25 x 2.75 x 9.88 inch / 210 x 70 x 251 mm

• Notes
• Heathkit 2-m-Mobiltransceiver HW-202.
  Frequency-Range: 143.9 to 148.3 MHz; 6 crystal channels for RX and TX; P_out: 10 W; Tone-Burst Encoder optional.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 180.00 USD

• Source of data

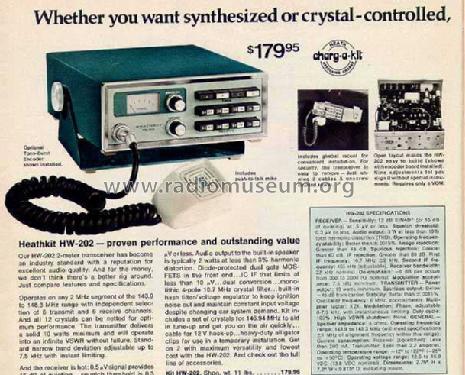

• -- Original prospect or advert

• Mentioned in
• Funk-Technik (FT) (17/1973, S. 627, 630, 632, 634 / Beschreibung, Daten, Teilschema)

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
