• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1972–1975 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 89223

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 13 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: QRP-CW-Transceiver HW-7 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 9.25 x 4.25 x 8.5 inch / 235 x 108 x 216 mm

• Notes
• Heathkit QRP-CW-Transceiver HW-7.
  DC-Power Input: 3 W at 40 m (7.0-7.2 MHz), 2,5 W at 20 m (14.0-14,2 MHz), 2 W at 15 m (21.0-21.3 MHz). Built-in VFO an sidetone.
  Special external power-supply: HWA-7-1 as an accessory.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Price in first year of sale
• 80.00 USD

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Heathkit: A Guide to Amateur Radio Products

• Literature/Schematics (1)

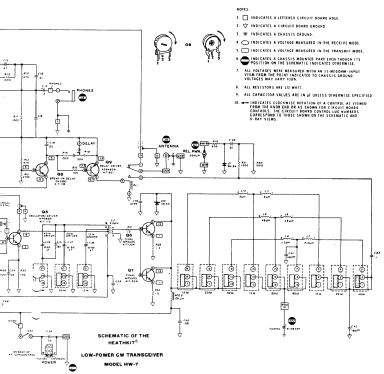

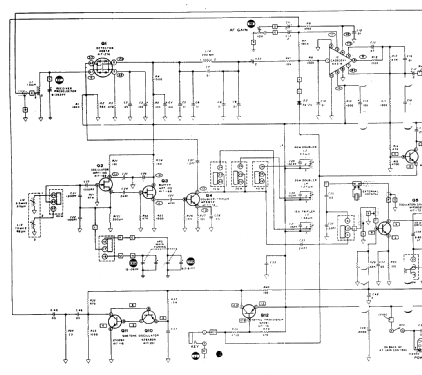

• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
