Laboratory Power Supply PS-1

Heathkit (Brand), Heath Co.; Benton Harbor (MI)

Data
Forum
Pictures
Collections

  • Year
  • 1952 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 344476
    • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Laboratory Power Supply PS-1 - Heathkit Brand, Heath Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Laboratory Power Supply, PS-1

    Power supply for laboratory use.

    Voltage output:
    No load: 150 to 400 V DC.
    With 25 mA load: 30 to 310 V DC.
    With 50 mA load: 25 to 250 V DC.

    A single instrument can read supplied voltage (0 - 500 V) and current  (0 - 200 mA) through suitable switching.

    It also provides  6.3  VAC for filament power.

  • Mentioned in

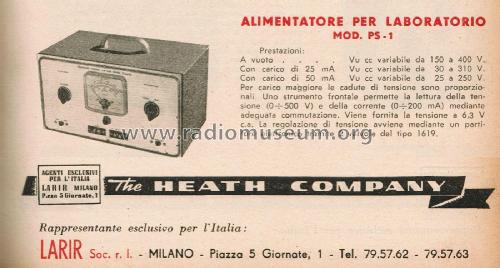

  • -- Original prospect or advert (“Selezione Radio” Italy, February 1952.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
