• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 172748

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BS8 12AU7 6BS8 12AU7 6BS8 12BH7 12BH7 6X4 1V2 3RP1 0A2 0C2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope IO-10 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 120 x 220 x 320 mm / 4.7 x 8.7 x 12.6 inch

• Notes
• DC- 200 KHz

• Literature/Schematics (1)

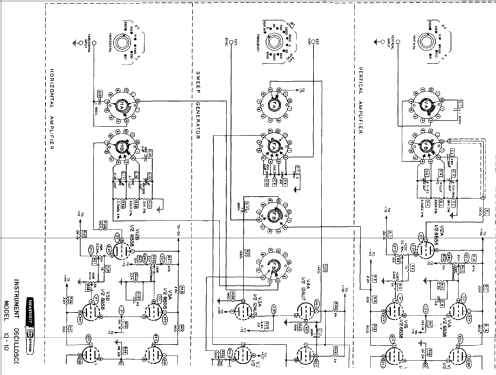

• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
