• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1961–1965 ?

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 90845

• • alternative name: Heath Company

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 117 / 6; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Metal case

• from Radiomuseum.org
• Model: Pawnee HW-20 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 6 x 10 inch / 305 x 152 x 254 mm

• Notes

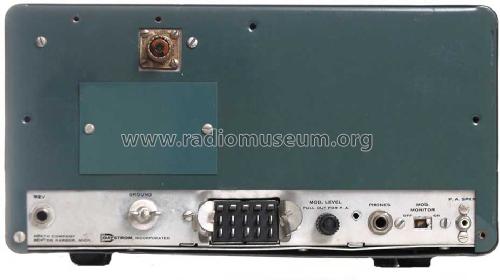

• Heathkit VHF-Transceiver Pawnee HW-20.
  Coverage 2 m HAM band in AM and CW.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 200.00 $

• Source of data
• Heathkit: A Guide to Amateur Radio Products

• Mentioned in
• Funk-Technik (FT) (20/1964, S. 743 - 745 / Beschreibung, Daten, Teilschema)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
