Regulated Power Supply IP-27
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1967
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 80678
-
- alternative name: Heath Company

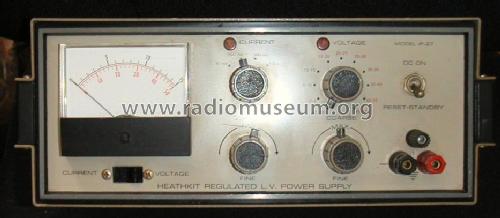

Bild aus Heathkit Prospect 1973
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125; 210-250 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Regulated Power Supply IP-27 - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 335 x 131 x 230 mm / 13.2 x 5.2 x 9.1 inch
- Notes
- Heathkit Regulated L. V. Power Supply IP-27.
Spannung: 0,5 V bis 50 V in 10 Stufen stetig regelbar; Strom: 50 mA bis 1,5 A in 4 Stufen stetig regelbar.
Kit 279,- DM.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Price in first year of sale
- 449.00 DM
- Mentioned in
- -- Original prospect or advert (deutscher Heathkit Katalog 1973)
- Author
- Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
