• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 154450

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BH6 6L6GC 6L6GC 6X4 0A2 0A2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

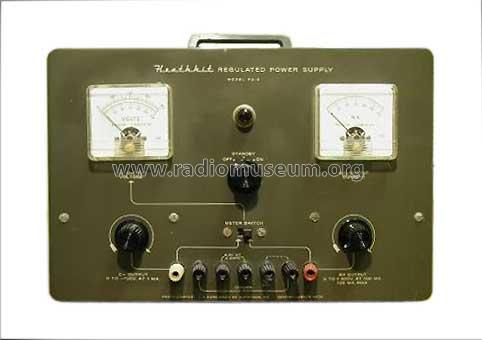

• Model: Regulated Power Supply PS-4 [117V] - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 220 x 180 mm / 13 x 8.7 x 7.1 inch

• Notes
• DC : 0 +400V / 0 -100V
  AC : 6.3V
  Redresseurs Sélénium et Silicium.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Dominique Denis. See "Data change" for further contributors.
