• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1966–1976

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 73790

• • alternative name: Heath Company

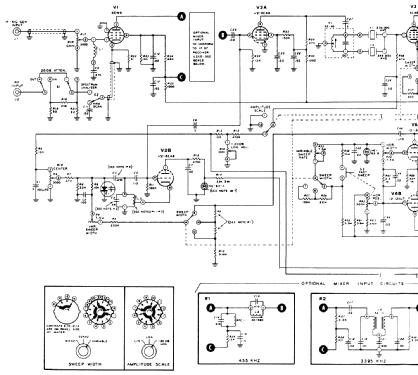

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6EW6 6EA8 6EW6 6AU6 6AT6 12AU7 3RP7

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 117; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Scanalyzer SB-620 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 255 x 170 x 270 mm / 10 x 6.7 x 10.6 inch

• Notes

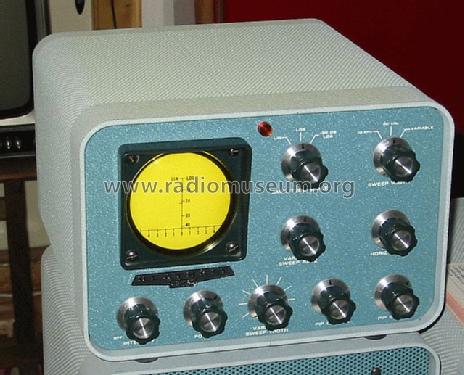

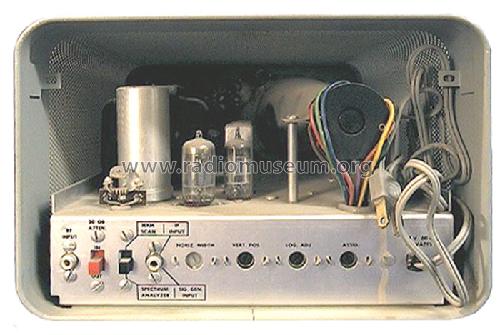

• Heathkit Scanalyzer SB-620.

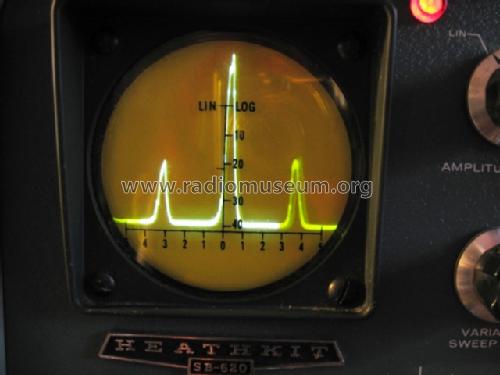

  IF panorama-adapter for SB-series tranceivers/receivers (3395 kHz). Also good for other receivers with another IF.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Price in first year of sale
• 120.00 $

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Heathkit: A Guide to Amateur Radio Products

• Author
• Model page created by a member from D. See "Data change" for further contributors.
