• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1968 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 79963

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6GH8 6BH6 6BQ7 12AU7 12AX7 12AU7 12AU7 3RP1

• Power type and voltage
• Alternating Current supply (AC) / 105-125; 210-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Scope IO-17 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 140 x 242 x 369 mm / 5.5 x 9.5 x 14.5 inch

• Notes

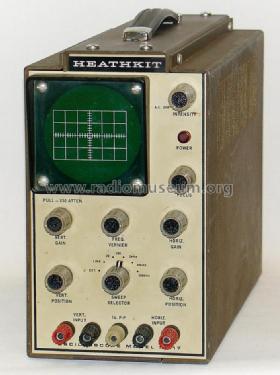

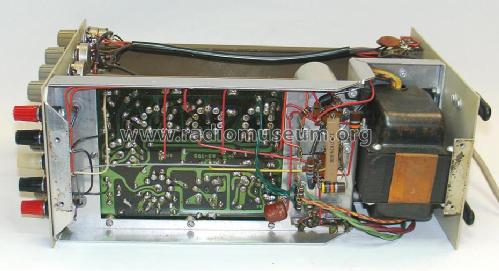

• Heathkit 5MHz 3" Scope Model IO-17.
  Power Consumption 60 Watts




  7-cm-Breitband-Kleinoszillograf
  Bausatz 370 DM, Fertiggerät 525 DM.

• Net weight (2.2 lb = 1 kg)
• 12 lb (12 lb 0 oz) / 5.448 kg

• Price in first year of sale
• 79.95 USD

• Mentioned in
• -- Original-techn. papers. (deutscher Heathkit Katalog 1971/72)

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
