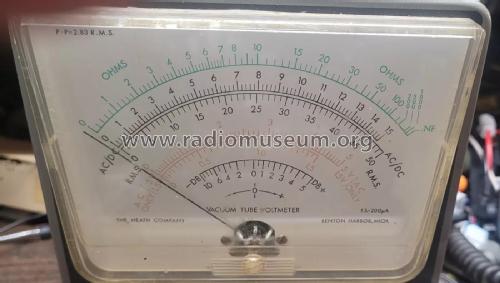

Service Bench VTVM IM-32
Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Heathkit (Brand), Heath Co.; Benton Harbor (MI)
- Year
- 1962
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 357811
-
- alternative name: Heath Company
Heathkit Datenblatt IM-32
Heathkit Datenblatt IM-32

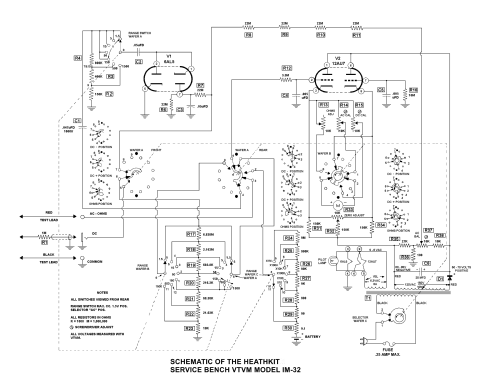

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105-125 & C: 1 x 1.5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Service Bench VTVM IM-32 - Heathkit Brand, Heath Co.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 6.5 x 9.5 x 5 inch / 165 x 241 x 127 mm
- Notes
-
1.5V C cell dry battery for resistance measuring.
AC power diode rectification.
- Net weight (2.2 lb = 1 kg)
- 6 lb (6 lb 0 oz) / 2.724 kg
- Price in first year of sale
- 32.95 USD
- Mentioned in
- - - Manufacturers Literature
- Literature/Schematics (1)
- -- Original prospect or advert (Heathkit Catalog 81/30, Fall-Winter 1962-63, page 79.)
