• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1960–1962 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 89331

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AT7 6AN8

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

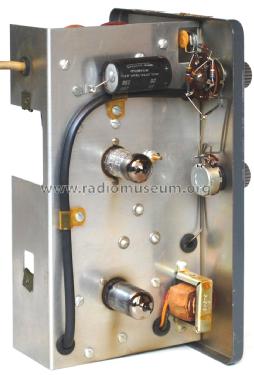

• Model: RF Signal Generator RF-1 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 6.5 x 9.5 x 5 inch / 165 x 241 x 127 mm

• Notes

• Heathkit Signal Generator RF-1, manufactured in the USA, but see also model RF-1E as 220 Volt-version. This model might have been adapted or procuced in the UK.

  AM modulation extern and intern. Intern AF output. Frequency ranges: 100-320 kHz, 310-1100 kHz, 1-3.2 MHz, 3.1-11 MHz, 10-32 MHz, 32-110 MHz (no FM !).

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Hinrich Grensemann † 15.5.16. See "Data change" for further contributors.
